100L Glass Filter Reactor

Delivery time: 2-4 weeks

$29,890.00 USD Excl. tax
$29,890.00 USD Incl. tax
Information

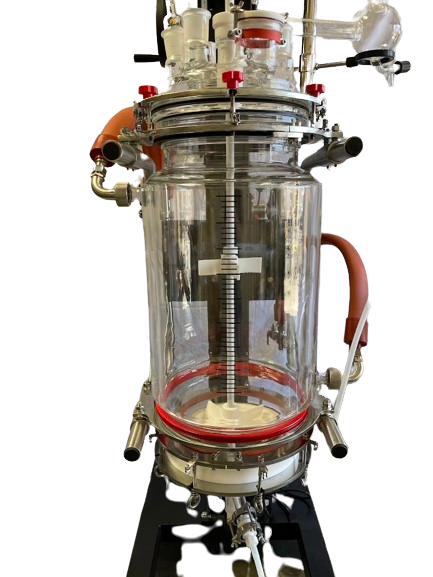

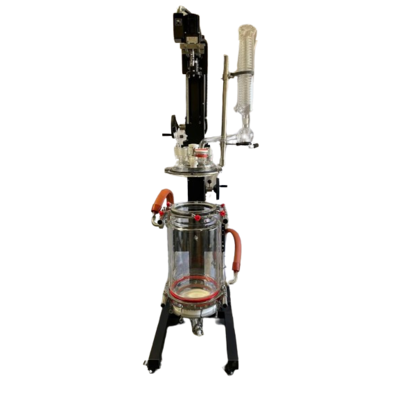

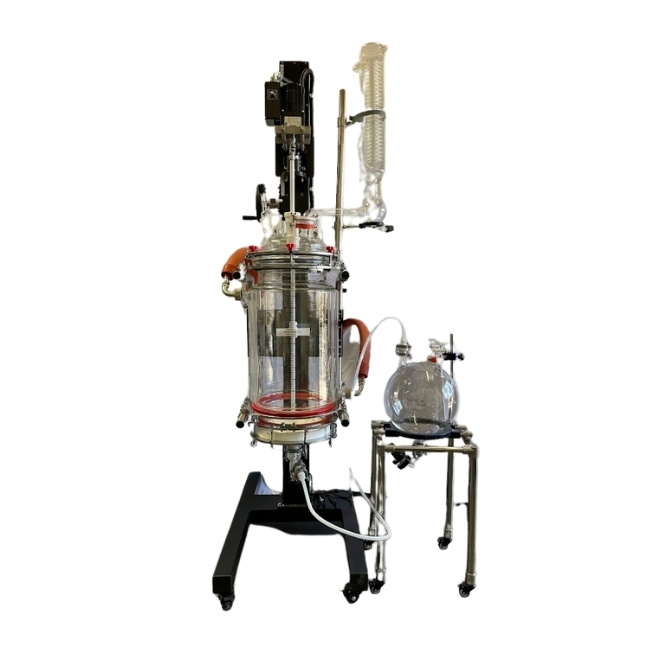

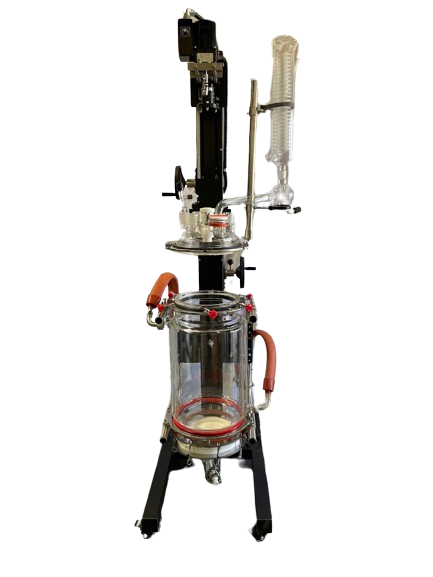

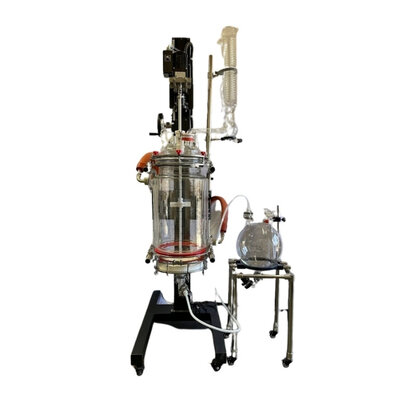

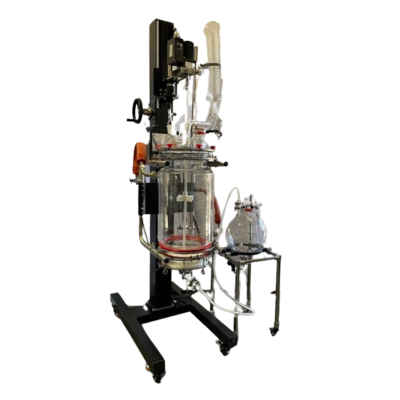

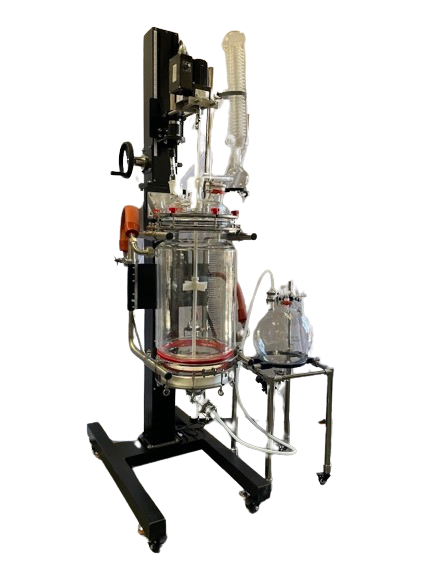

100 Liter Filter Reactor

Goldleaf Glass Filter Reactor Systems are made with the ideal chemical resistant borosilicate glassware and ptfe seals for a wide range of applications. Engineered for a user friendly and efficient performance with a sturdy, easy to assemble stainless steel frame and digital stir controller for precise RPM's.

Filter reactors come with a filter plate to hold filter paper for desired micron size. Choose your type of filter and always have a clean sheet for every process.

Single and Double Jacketed Filter Reactors can be used with a recirculating heater or chiller to create a temperature controlled environment. Easily connect to any equipment that fits your needs. Double jacketed reactors have an extra layer of vacuum insulation to prevent energy loss along with fogging and condensation.

Specs:

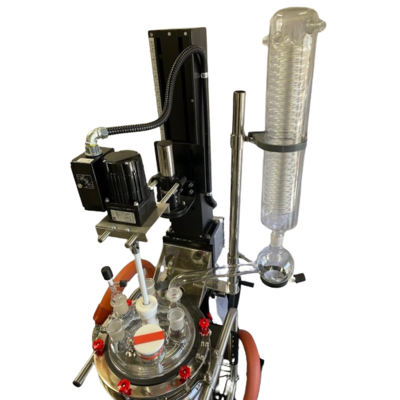

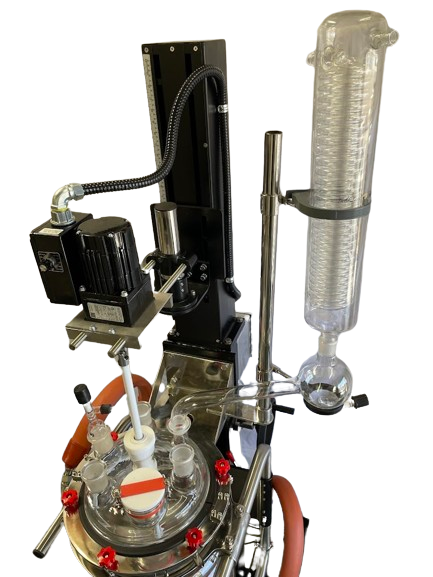

  • Lifting function for stir motor to raise impeller out of filtered substance

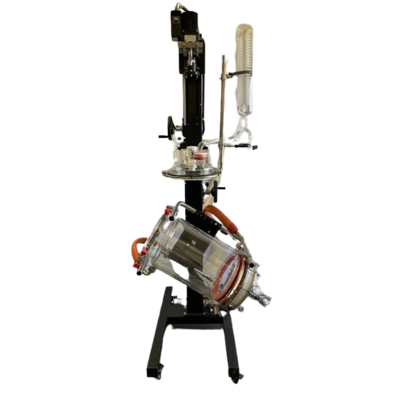

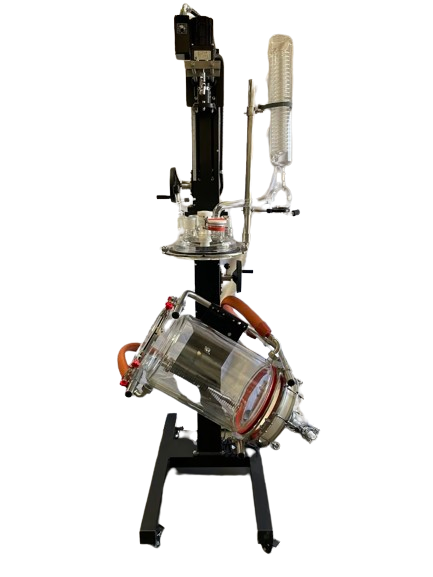

  • Articulating, rotatable glass body for easy collection and cleaning

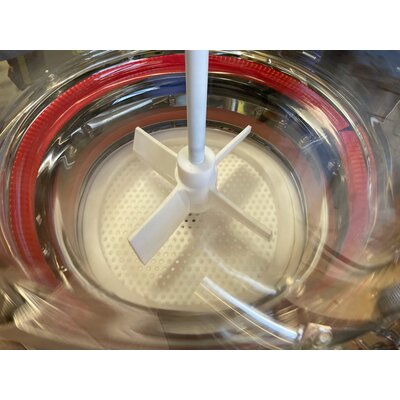

  • Filter plate for your choice of filter paper
  • Temperature Range: -90°C to 240°C
  • Single Jacket for Temperature Control

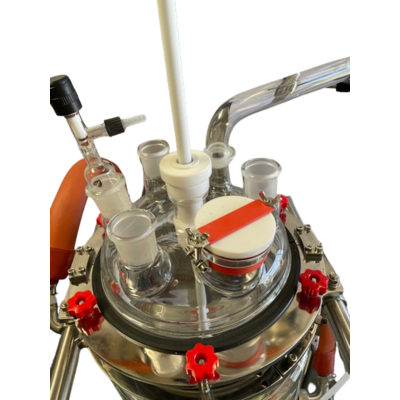

  • Multi-Port Lid
  • Reflux Condenser
  • Feed Funnel
  • Stainless Steel Stand
  • 110-120V 60Hz



UPGRADE to an Air Powered Motor or Explosion Proof electronics for use with flammable solvents

-Air Powered Motor (click for more info) operates via external air compressor so there are no electronics on the reactor skid

-Explosion Proof C1D2 Kit (click for more info) includes a sealed, C1D2 rated electric stirrer and control panel. Certified and safe for use with flammable solvents



Features:

Heavy Duty Stainless Steel Frame with Lifting Capabilities for easy collection and cleaning.

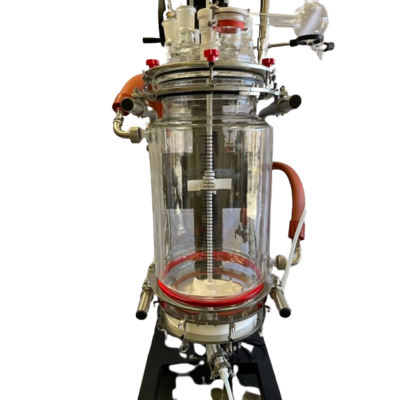

High quality borosilicate glass for a strong body that is chemically compatible with most solvents. Heavy duty, thick wall glassware can handle freezing to hot temperatures.

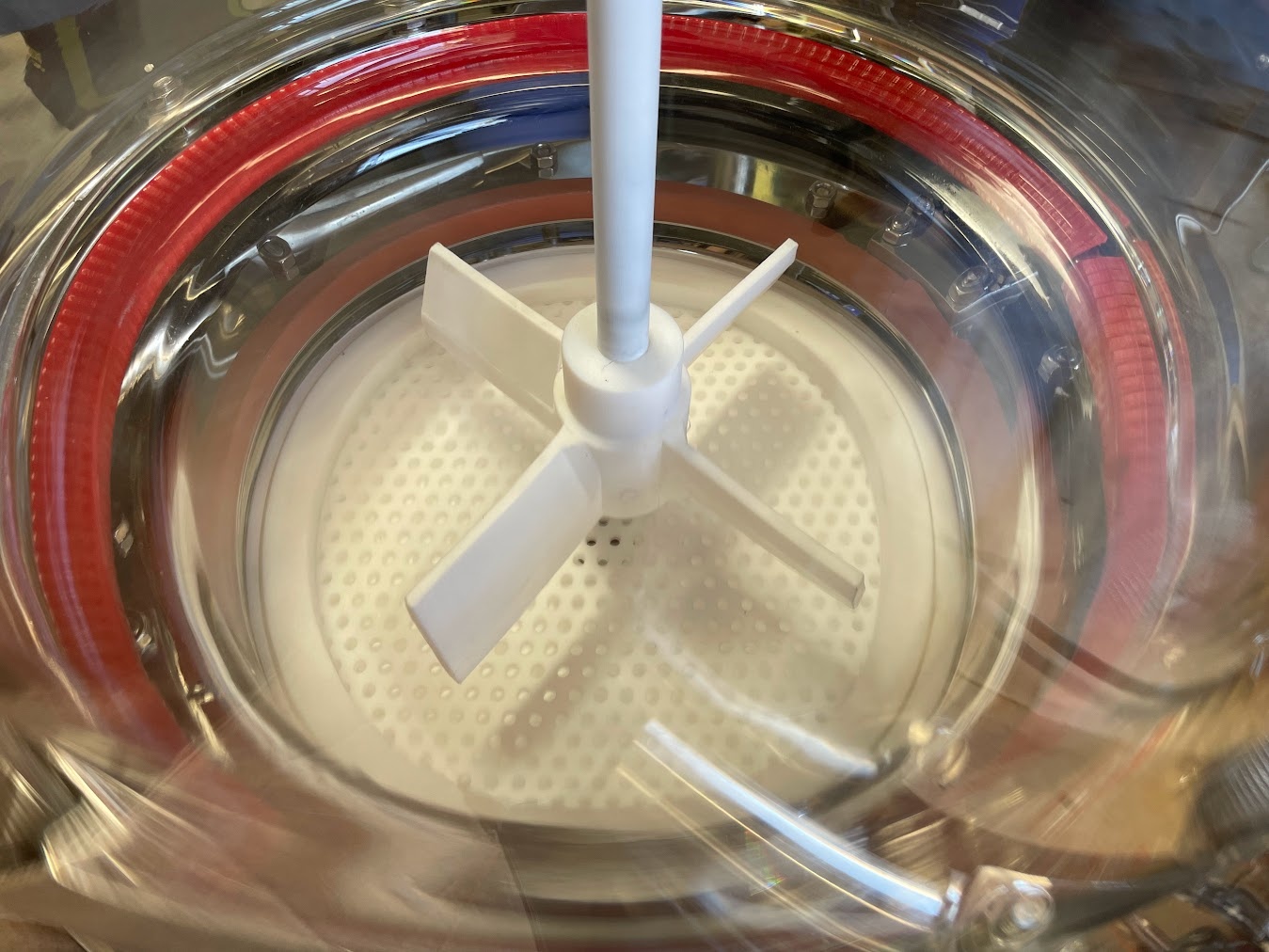

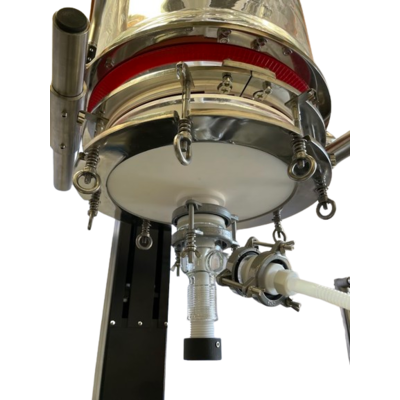

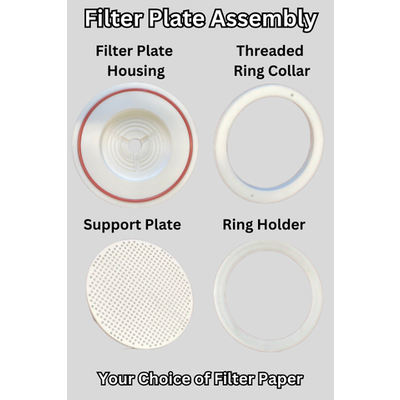

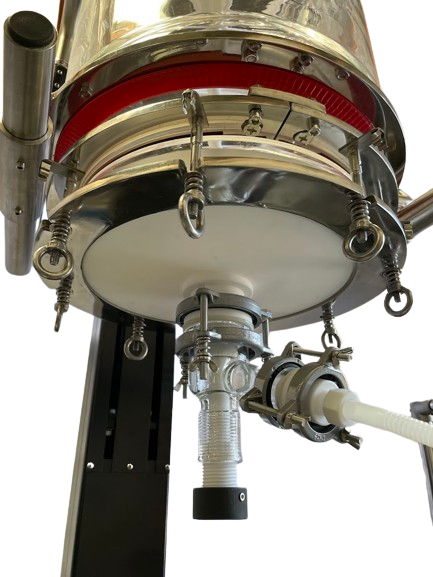

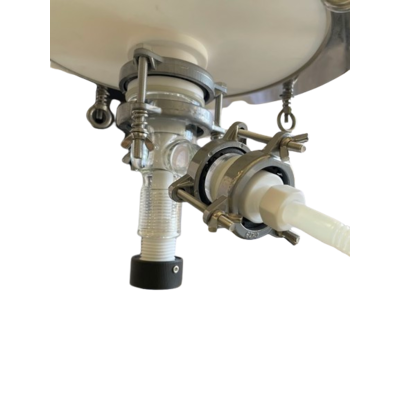

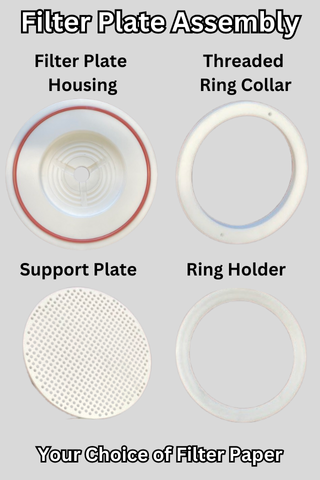

PTFE Filter Plate. Choose your micron level of filtration using a filter plate with a tight seal preventing any pass through. Ptfe wetted material is chemically inert and safe to use with most volatile substances.

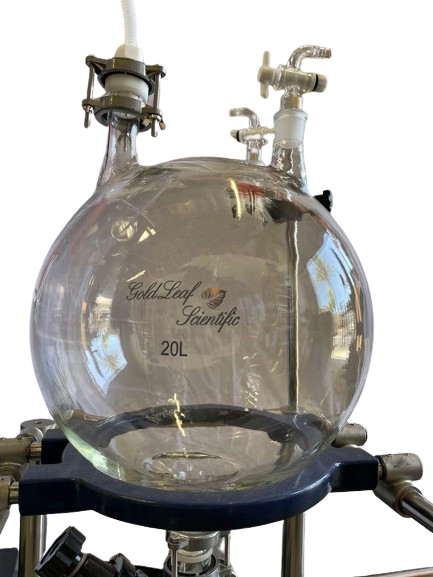

Your choice of ancillary equipment to fully customize your setup. Choose the glassware you want on top of the reactor for measuring, feeding, distilling, collecting, and more.



High torque stirring motor can handle any solution no matter how thick or viscous.



Additional sensors and data collection equipment available to create precise and consistent working conditions every time.



Click HERE For a Full Guide on Filter Reactors



Take a close up look at our pilot scale filter reactors in these videos:



Items

Details

Glass Materials

High Quality Borosilicate Glass 3.3

Wetted Parts

Glass and PTFE

Reaction Vessel Capacity

20L, 50L, 100L

Thermal Jacket

Ring Baffles within the Thermal Jacket (5L, 10L, 20L, 30L)

Full Jacket Design (5L, 10L, 20L, 30L)

Filtration Area

ID215 Flange: 346 cm² (20L, 50L)

ID280 Flange: 615 cm² (50L, 100L)

ID400 Flange: 1,256 cm² (50L, 100L)

Filtration Micron

Micron: 0.2μm to 200μm (depends on your materials)

Filtration Materials: PTFE



Note: Not included by default

Stirring Motor

DC Brushless Motor, 50W, 100W, 150W

AC Motor with Gear Reducer: 120W ~ 1500W

Explosion-Proof Motor: 180W, 250W, 370W, 550W, 750W, 1500W



Stirring Range: 50 ~ 600 RPM



Realtime Display:  Mixing Speed, Materials Temperature

Mixing Sealing

PTFE + Mechanical

Optional: Magnetic coupling seal

Condenser

Cooling Coil Condenser

Dropping Feeding Funnel

Dropping Feeding Funnel with PTFE Metering Valve and Equalizing Arm

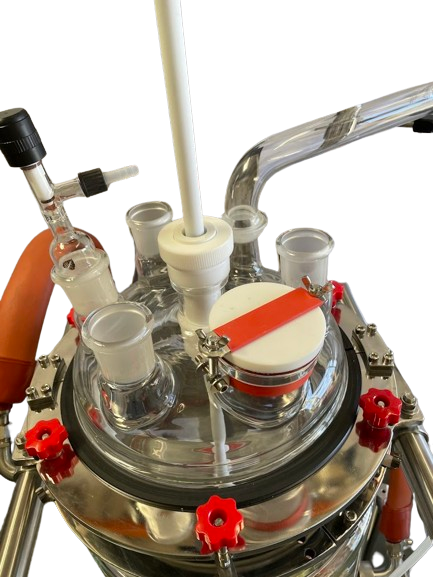

Glass Lid

Diameter: DN215, DN280, DN400 for your selection



8 Openings:

1) Dropping Feeding Funnel

2) Solid Materials Feeding

3) Stirrer

4) Liquid-Feeding

5) Temperature Probe

6) Condenser Reflux

7) Reserved (By default: Pressure Release)

8) Spray Cleaning or PH measurement (Optional)

Stirring Impeller

PTFE Anchor Type

PTFE Pitched Paddle Type

PTFE Frame Type
