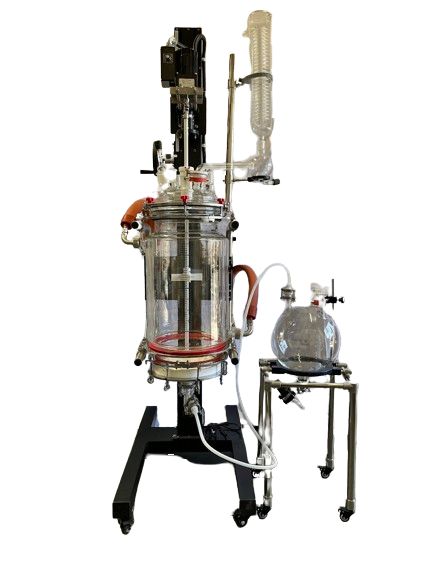

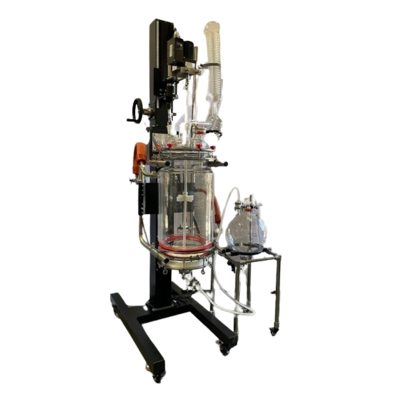

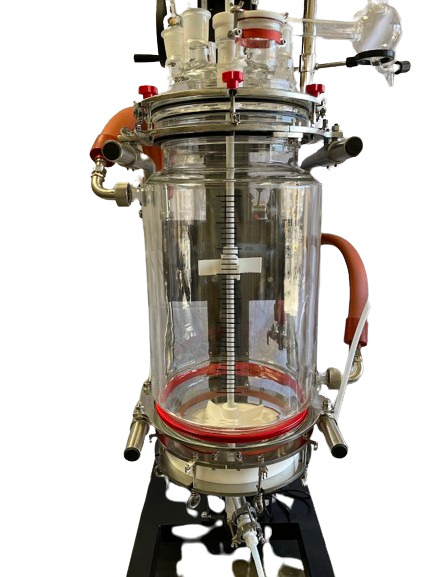

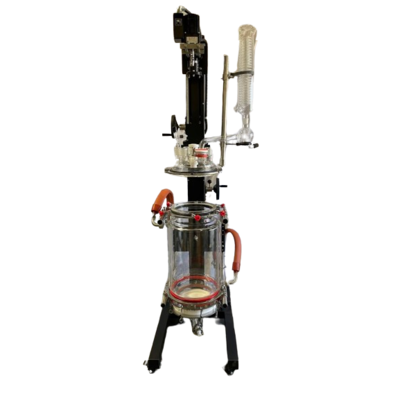

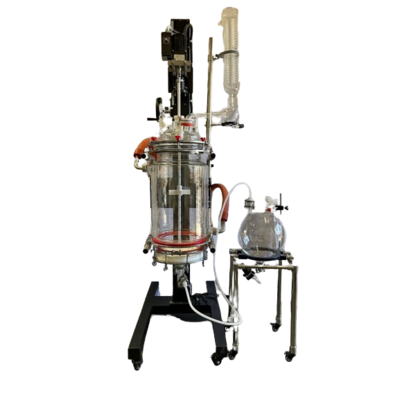

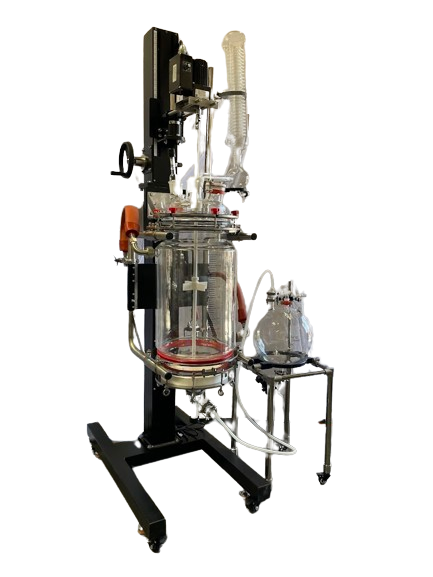

10L Filter Reactor

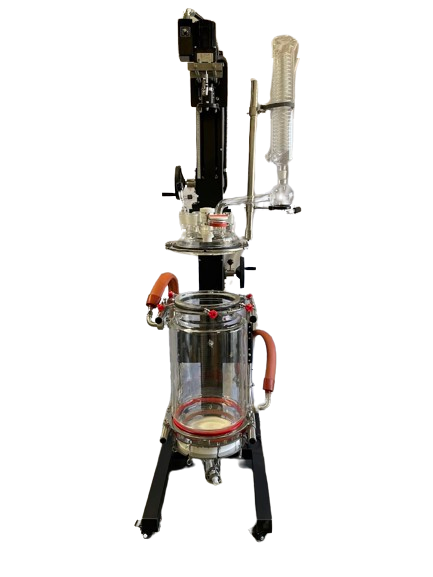

The Goldleaf Scientific Filter Reactor with Electric Lift makes every reaction easier. This unique design allows separation of the body and lid of the reactor by simply pressing a button. Now you can easily access the reactor body and remove any solids, perform cleaning, or perform maintenance. These reactors greatly speed up your processing and pay for themselves by reducing downtimes. If access to the vessel is important to your reaction process, a Goldleaf 10L Filter Reactor will remove the back pain from lab work.

A 10L filter reactor is a very versatile laboratory system. Single and double jacketed options create different advantages for each user. A single jacket reactor provides exceptional temperature control to create the ideal environment for your reactions. Adding an extra layer (to create a triple layered reactor) creates a vacuum insulated jacketed that improves a number of performance metrics, including improved temperature control, prevents losing energy to ambient environment, and prevents fogging or condensation on the glass that would decrease visibility.

When shopping for a 10L filter reactor, keep in mind customization options, lifting features, and overall customer service and reliability. Goldleaf has an in house glass shop capable of any modifications or custom work you may need. For any questions please reach any time via email Sales@goldleaflabs.com or call us at (510)487-1390.



10L Filter Reactor Key Features:

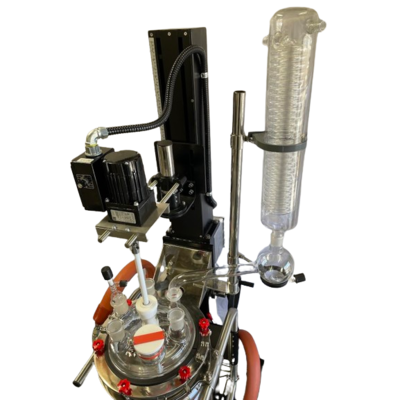

  • Lifting function on lid for easy access to inner vessel

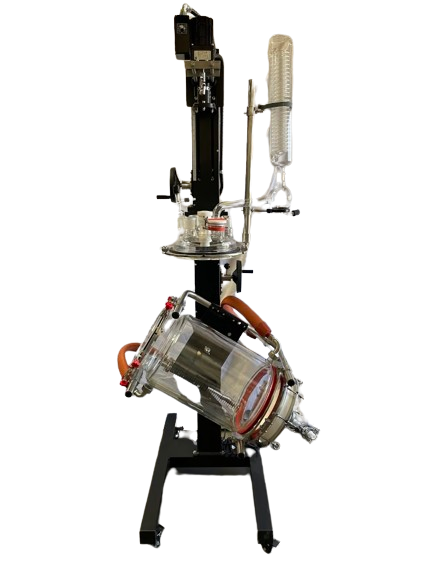

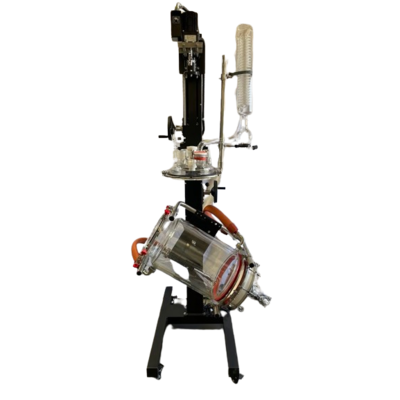

  • Articulating body for easy collection of solids
  • Chemically resistant 3.3 Borosilicate glass vessel (single or double jacketed)
  • Solid stainless steel frame
  • Explosion proof upgrades available
  • Customizable glassware and setup



Filter reactors are ideal for working with solids and crystallizing material. For reactions working primarily with liquids, take a look at our 10L Non-lifting Reactor.



10L Filter Reactor Applications:

  • Liquid to liquid extraction (hexane/saline washes)
  • Solid to liquid extraction (cannabinoid extraction with ethanol, heptane, etc)
  • Chemical reactions (precise temperature/agitation control, and all surfaces and parts are glass or PTFE for optimal chemical resistance)
  • Bulk heating/cooling (winterizing/dewaxing)
  • Distillation (can distill your solvent, i.e. recover your ethanol)
  • Steam distillation (for large scale terpene extraction)
  • Crystallization (ideal for large crystal growth)
  • Cryo-extraction (can withstand and hold very hot or cold temperatures)
  • Mix/refluxing material (great for carbon scrubs or mixing absorbents)



UPGRADE to an Air Powered Motor or Explosion Proof electronics for use with flammable solvents

-Air Powered Motor (click for more info) operates via external air compressor so there are no electronics on the reactor skid

-Explosion Proof C1D2 Kit (click for more info) includes a sealed, C1D2 rated electric stirrer and control panel. Certified and safe for use with flammable solvents



Features:

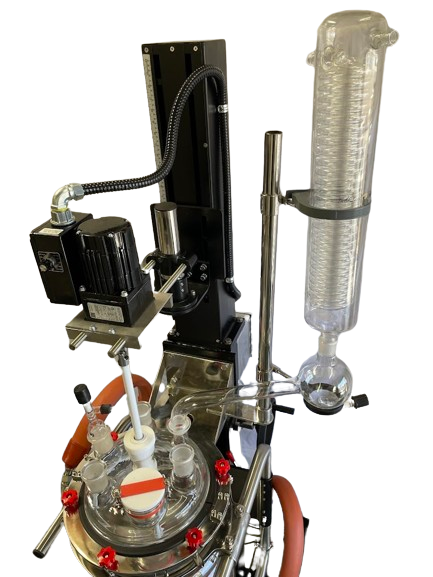

Heavy Duty Stainless Steel Frame with Lifting Capabilities for easy collection and cleaning.

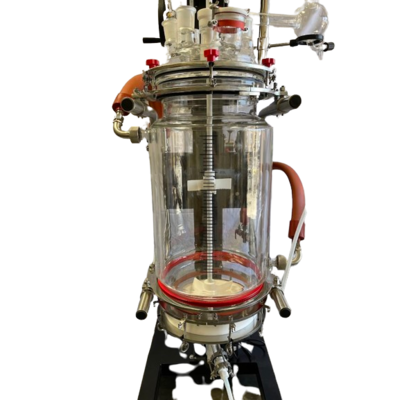

High quality borosilicate glass for a strong body that is chemically compatible with most solvents. Heavy duty, thick wall glassware can handle freezing to hot temperatures.

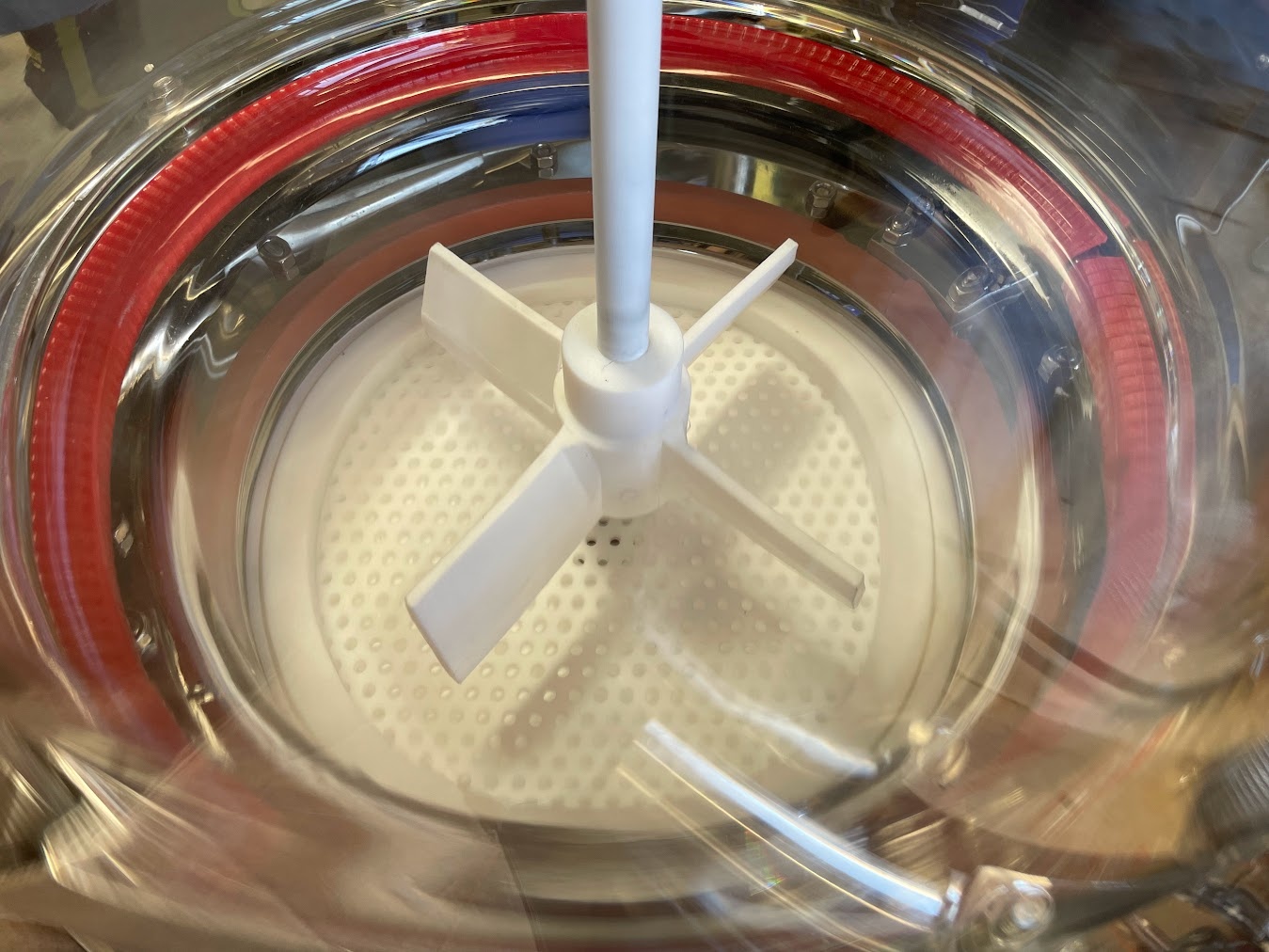

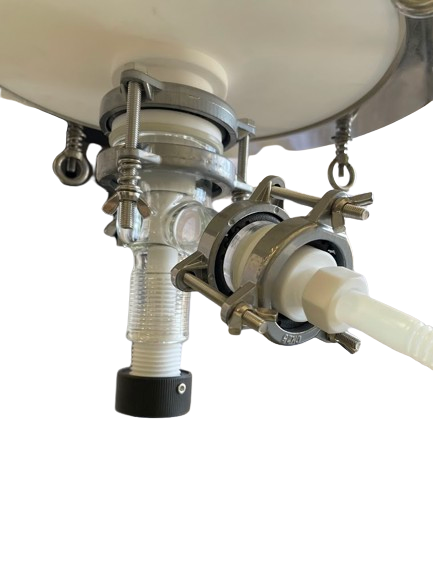

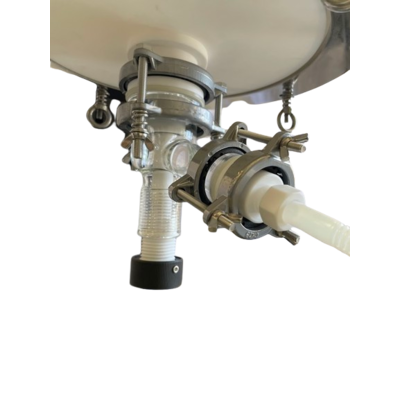

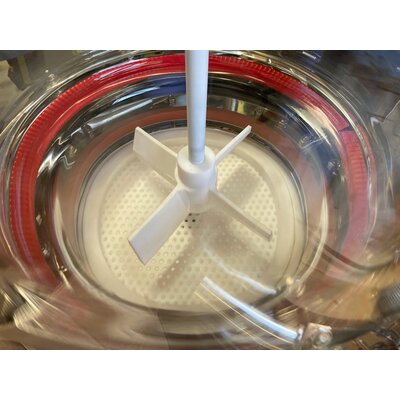

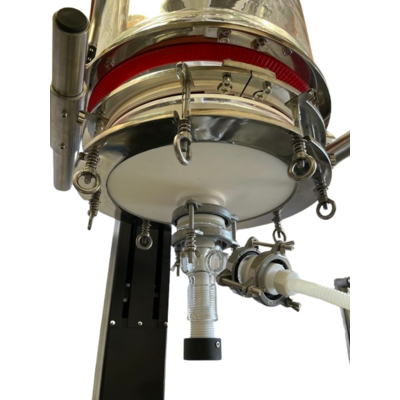

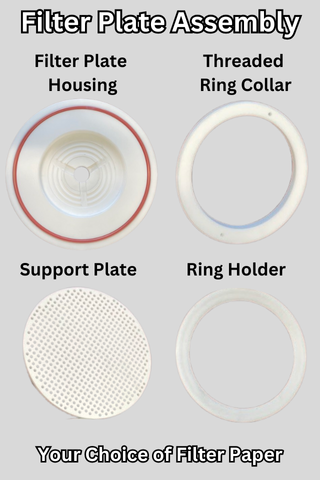

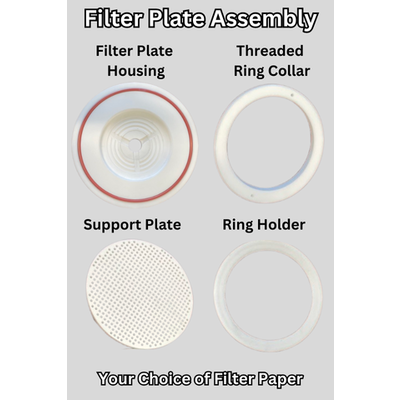

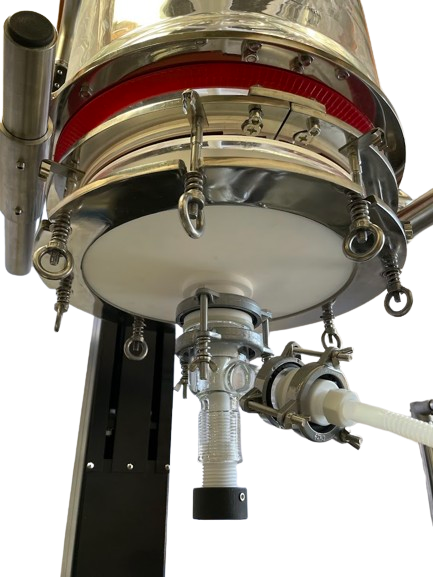

PTFE Filter Plate. Choose your micron level of filtration using a filter plate with a tight seal preventing any pass through. Ptfe wetted material is chemically inert and safe to use with most volatile substances.



Your choice of ancillary equipment to fully customize your setup. Choose the glassware you want on top of the reactor for measuring, feeding, distilling, collecting, and more.



High torque stirring motor can handle any solution no matter how thick or viscous.



Additional sensors and data collection equipment available to create precise and consistent working conditions every time.



Click HERE For a Full Guide on Filter Reactors



Take a close up look at our pilot scale filter reactors in these videos:





Items

Details

Glass Materials

High Quality Borosilicate Glass 3.3

Wetted Parts

Glass and PTFE

Reaction Vessel Capacity

10L, 20L, 50L, 100L

Thermal Jacket

Ring Baffles within the Thermal Jacket (5L, 10L, 20L, 30L)

Full Jacket Design (5L, 10L, 20L, 30L)

Filtration Area

ID215 Flange: 346 cm² (20L, 50L)

ID280 Flange: 615 cm² (50L, 100L)

ID400 Flange: 1,256 cm² (50L, 100L)

Filtration Micron

Micron: 0.2μm to 200μm (depends on your materials)

Filtration Materials: PTFE



Note: Not included by default

Stirring Motor

DC Brushless Motor, 50W, 100W, 150W

AC Motor with Gear Reducer: 120W ~ 1500W

Explosion-Proof Motor: 180W, 250W, 370W, 550W, 750W, 1500W



Stirring Range: 50 ~ 600 RPM



Realtime Display:  Mixing Speed, Materials Temperature

Mixing Sealing

PTFE + Mechanical

Optional: Magnetic coupling seal

Condenser

Cooling Coil Condenser

Dropping Feeding Funnel

Dropping Feeding Funnel with PTFE Metering Valve and Equalizing Arm

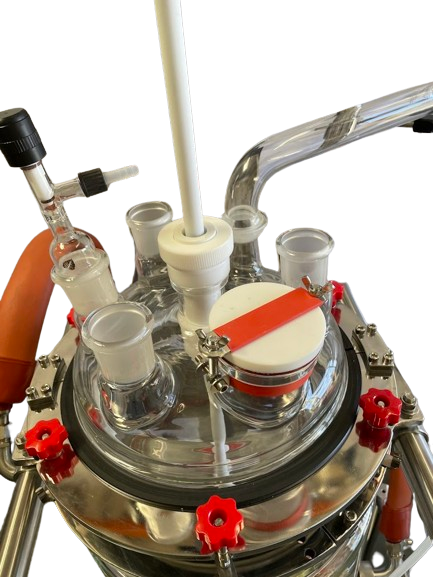

Glass Lid

Diameter: DN215, DN280, DN400 for your selection



8 Openings:

1) Dropping Feeding Funnel

2) Solid Materials Feeding

3) Stirrer

4) Liquid-Feeding

5) Temperature Probe

6) Condenser Reflux

7) Reserved (By default: Pressure Release)

8) Spray Cleaning or PH measurement (Optional)

Stirring Impeller

PTFE Anchor Type

PTFE Pitched Paddle Type

PTFE Frame Type
