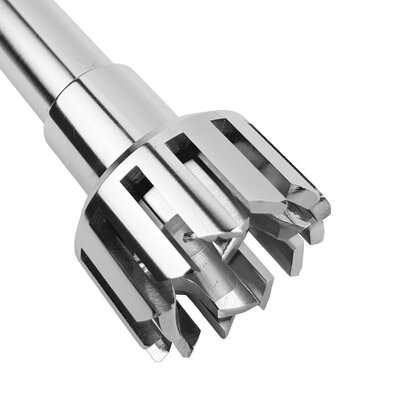

Homogenizer Shaft for X 1000D, 20mm

Goldleaf Scientific dispersers are sealed, so they can be used under vacuum, pressure and with viscous, foamy, and abrasive materials. This feature makes our dispersers unique among other homogenizers and has the widest variety of materials that can be homogenized (from thin liquids to thick viscous oils, and everything in between.) The dispersing tools have slanted rotor slots for fast processing and improved mixing turbulence.

The 20mm disperser shaft can be used with volumes from 250mL-5,000mL (depending on viscosity, see shaft selection guide below)

The DK30 continuous flow chambers can be used with 20mm shafts for applications that require a large quantity of material to be homogenized (up to 30 gal barrels)

Disbursing shafts have the same coupling system, allowing all the drive motors to accept multiple sizes of disperser shafts.

The viscosity of the fluid should be used to determine the type of disperser to use.

See out table below or our shaft selection guide here

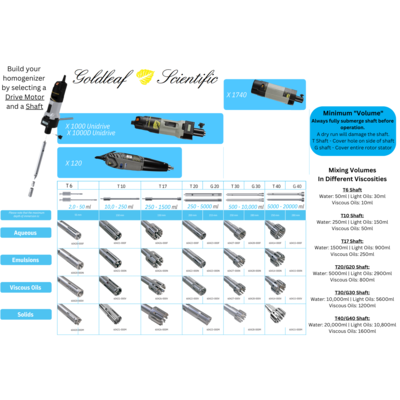

Shaft selection table

Dispersing tools are sold complete with rotor and stators. Rotors and stators can be changed which can convert the shaft for other applications i.e convert a viscous shaft to a fine shaft. Replacement rotors and stators are available for all types of dispersing tools such as.

• V-Disperser= V-Rotor + V-Stator
• F-Disperser= F-Rotor + F-Stator
• N-Disperser= F-Rotor + V-Stator
• M-Knife Disperser= Rotor M + Stator M

See our instruction manual for further details on operation

Instruction Manual

G20 Shaft Cleaning Guide
