50L Filter Reactor
50 Liter Filter Reactor
Goldleaf Glass Filter Reactor Systems are made with the ideal chemical resistant borosilicate glassware and ptfe seals for a wide range of applications. Engineered for a user friendly and efficient performance with a sturdy, easy to assemble stainless steel frame and digital stir controller for precise RPM's.
Filter reactors come with a filter plate to hold filter paper for desired micron size. Choose your type of filter and always have a clean sheet for every process.
Single and Double Jacketed Filter Reactors can be used with a recirculating heater or chiller to create a temperature controlled environment. Easily connect to any equipment that fits your needs. Double jacketed reactors have an extra layer of vacuum insulation to prevent energy loss along with fogging and condensation.
Specs:
- Lifting function for stir motor to raise impeller out of filtered substance
- Articulating, rotatable glass body for easy collection and cleaning
- Filter plate for your choice of filter paper
- Temperature Range: -90°C to 240°C
- Single Jacket for Temperature Control
- Multi-Port Lid
- Reflux Condenser
- Feed Funnel
- Stainless Steel Stand
- 110-120V 60Hz
UPGRADE to an Air Powered Motor or Explosion Proof electronics for use with flammable solvents
-Air Powered Motor (click for more info) operates via external air compressor so there are no electronics on the reactor skid
-Explosion Proof C1D2 Kit (click for more info) includes a sealed, C1D2 rated electric stirrer and control panel. Certified and safe for use with flammable solvents
Features:
Heavy Duty Stainless Steel Frame with Lifting Capabilities for easy collection and cleaning.
High quality borosilicate glass for a strong body that is chemically compatible with most solvents. Heavy duty, thick wall glassware can handle freezing to hot temperatures.

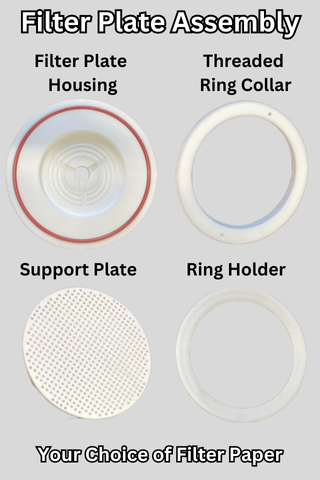

PTFE Filter Plate. Choose your micron level of filtration using a filter plate with a tight seal preventing any pass through. Ptfe wetted material is chemically inert and safe to use with most volatile substances.
Your choice of ancillary equipment to fully customize your setup. Choose the glassware you want on top of the reactor for measuring, feeding, distilling, collecting, and more.
High torque stirring motor can handle any solution no matter how thick or viscous.
Additional sensors and data collection equipment available to create precise and consistent working conditions every time.
Click HERE For a Full Guide on Filter Reactors
Take a close up look at our pilot scale filter reactors in this video:
Items |
Details |
Glass Materials |
High Quality Borosilicate Glass 3.3 |
Wetted Parts |
Glass and PTFE |
Reaction Vessel Capacity |
20L, 50L, 100L |
Thermal Jacket |
Ring Baffles within the Thermal Jacket (5L, 10L, 20L, 30L) Full Jacket Design (5L, 10L, 20L, 30L) |
Filtration Area |
ID215 Flange: 346 cm² (20L, 50L) ID280 Flange: 615 cm² (50L, 100L) ID400 Flange: 1,256 cm² (50L, 100L) |
Filtration Micron |
Micron: 0.2μm to 200μm (depends on your materials) Filtration Materials: PTFE
Note: Not included by default |
Stirring Motor |
DC Brushless Motor, 50W, 100W, 150W AC Motor with Gear Reducer: 120W ~ 1500W Explosion-Proof Motor: 180W, 250W, 370W, 550W, 750W, 1500W
Stirring Range: 50 ~ 600 RPM
Realtime Display: Mixing Speed, Materials Temperature |
Mixing Sealing |
PTFE + Mechanical Optional: Magnetic coupling seal |
Condenser |
Cooling Coil Condenser |
Dropping Feeding Funnel |
Dropping Feeding Funnel with PTFE Metering Valve and Equalizing Arm |
Glass Lid |
Diameter: DN215, DN280, DN400 for your selection
8 Openings: 1) Dropping Feeding Funnel 2) Solid Materials Feeding 3) Stirrer 4) Liquid-Feeding 5) Temperature Probe 6) Condenser Reflux 7) Reserved (By default: Pressure Release) 8) Spray Cleaning or PH measurement (Optional) |
Stirring Impeller |
PTFE Anchor Type PTFE Pitched Paddle Type PTFE Frame Type |
