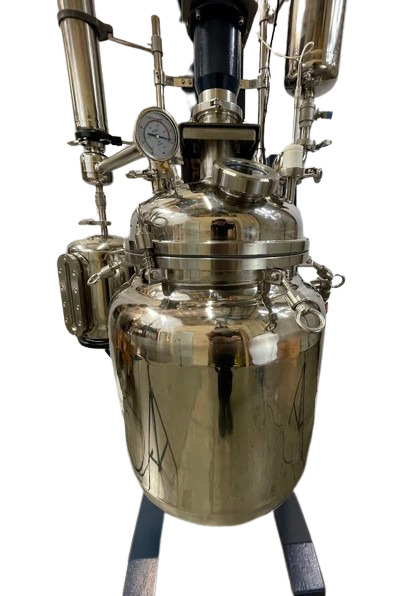

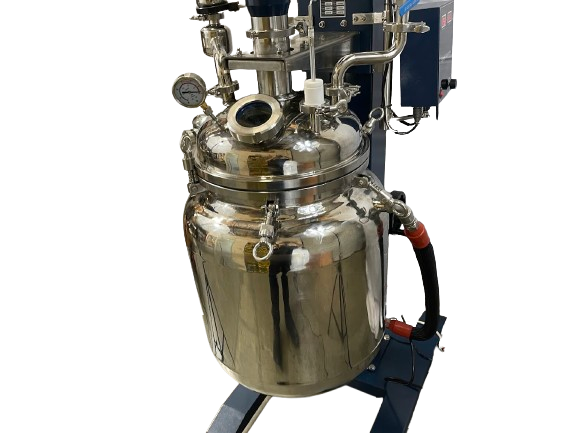

Double Jacket Non-Lifting Reactor (Stainless Steel)
Information
Stainless Steel Lifting Reactor
From Goldleaf
-Durable, stainless steel vessel for high temperature chemical reactions and mixing.
-Double Jacketed with vacuum insulated outer layer to prevent heat loss

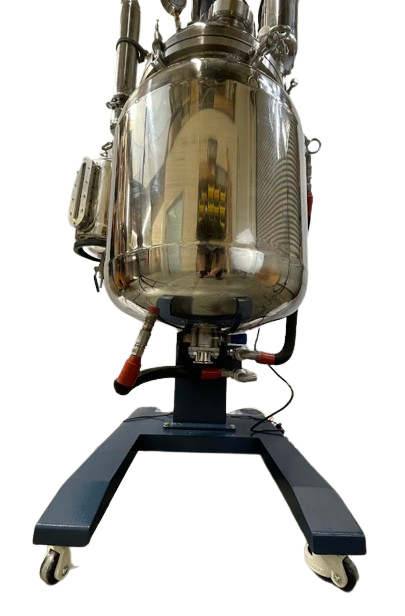

-Heavy duty steel frame

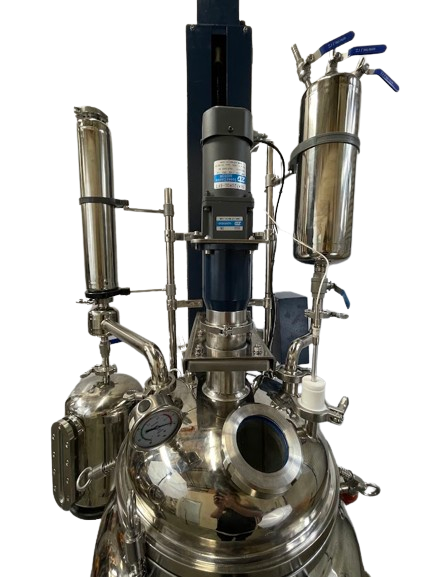

-Custom condensers and collection tanks available

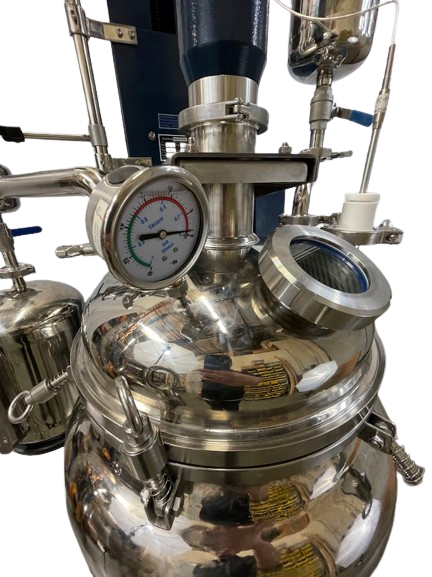

-Large sight glass for viewing
-Easy to use drain port
-Tri clamp fittings are easily adapted to customers needs
-Comes with feed funnel, reflux condenser, and collection vessel
-(Vacuum pumps, heater, chiller, etc, sold separate)
Specs:
Model | Double Jacket Stainless Steel Reactor |
Electric stirring motor | 115v 60hz |
Port configuration | 1.5" Tri-clamp |
Main vessel | Volumes: 10L, 20L, 50L, 100L, 150L |
Agitator | Stainless steel 3 blade impeller |
Center fluid jacket | Stainless Steel |
Collection tank | 5L stainless steel collection tank |
Material | 316L Grade Stainless Steel |
Main Condenser | Reflux condenser |
Pressure | Ultimate Vacuum Level: 1 Torr Maximum Pressure: 15psi |
Temperature range | -60C° to 250°C |

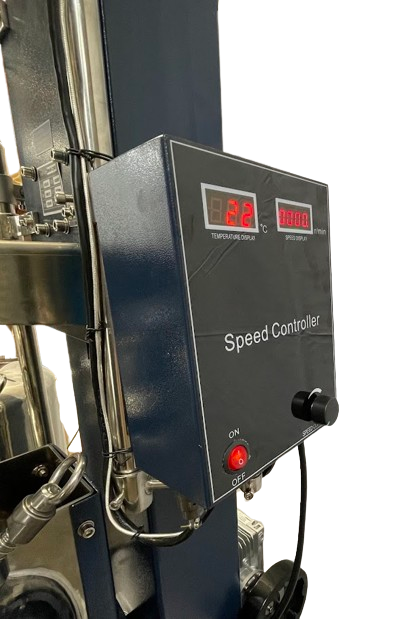

Temperature sensor/display | Digital |
Sealing gasket | Silicone |
Main Mounting Frame | Stainless Steel |
Drain port ground clearance | 15" |
Unit/shipping weight | 650 |
Unit/shipping dimensions | 50 x 40 x 80 |
