Homogenizer Shaft for X 1740, 30mm

Goldleaf dispersing tools and generators have unique slanted rotor slots for fast processing and improved mixing turbulence. The dispersing tools are interchangeable have ceramic shaft seals, so they can be used under vacuum, pressure and with abrasive materials. Rotors and stators are exchangeable and there are optional continuous flow chambers (DK30 and DK40) as well as a DK 40 Kit, which consists of drive unit X1740, a flow-through chamber with external cooling, bench mounting device and a G 40 generator.

All Goldleaf disbursing shafts have the same coupling system, allowing all the drive motors to accept any choice of suitable shafts.

Dispersing tools are sold complete with rotor and stators as F (fine viscosity), N (neutral viscosity), V (high viscosity) and M (knife version) types. Different rotors and stators are available to interchange. Replacement rotors and stators are available for all types of dispersing tools such as

Disbursing shafts have the same coupling system, allowing all the drive motors to accept multiple sizes of disperser shafts.

The viscosity of the fluid should be used to determine the type of disperser to use.

See out table below or our shaft selection guide here

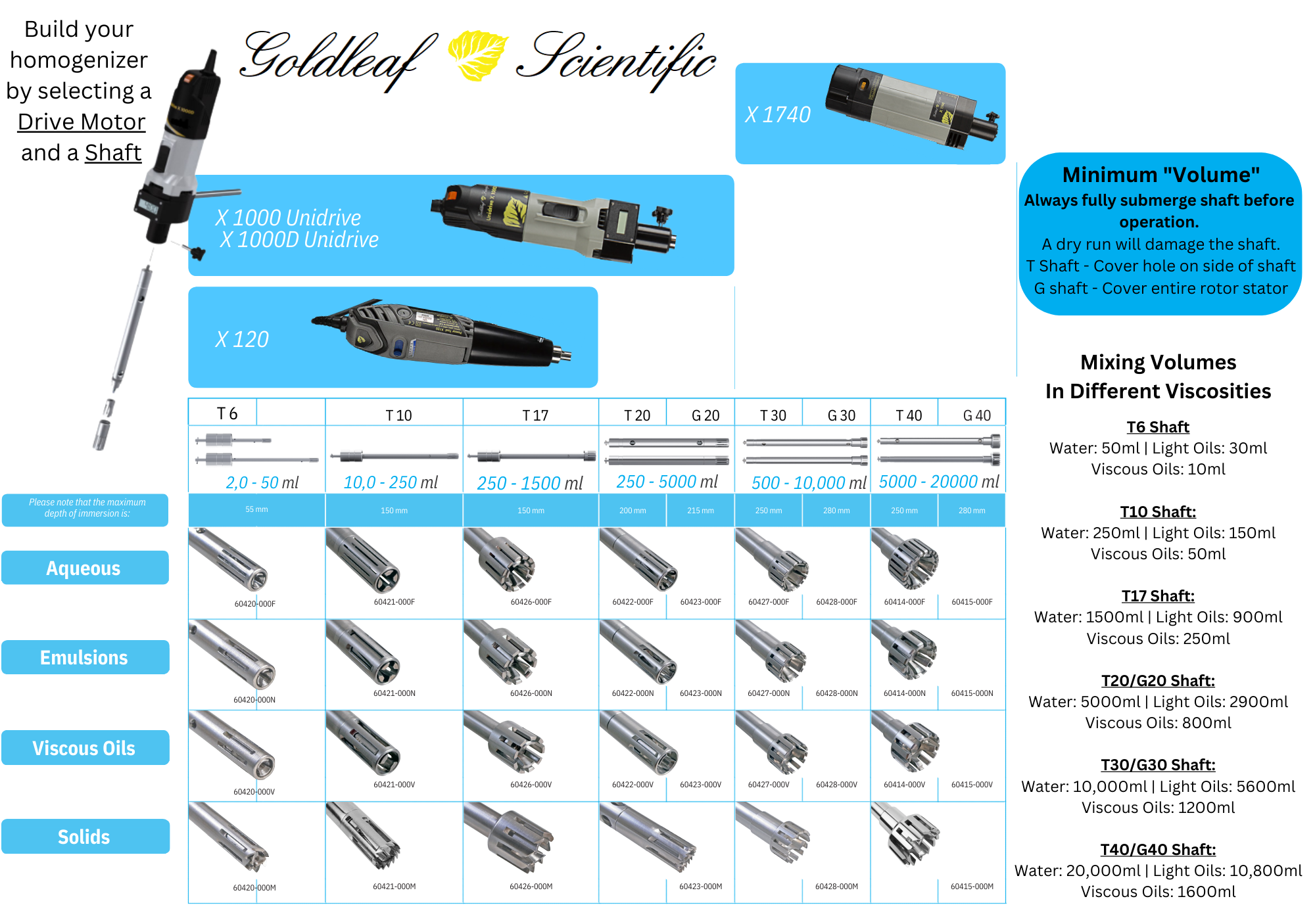

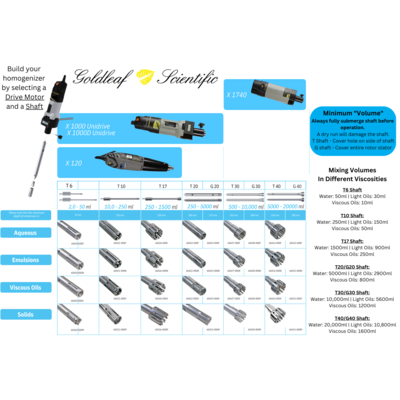

Shaft selection table

Dispersing tools are sold complete with rotor and stators. Rotors and stators can be changed which can convert the shaft for other applications i.e convert a viscous shaft to a fine shaft. Replacement rotors and stators are available for all types of dispersing tools such as.

• V-Disperser= V-Rotor + V-Stator
• F-Disperser= F-Rotor + F-Stator
• N-Disperser= F-Rotor + V-Stator
• M-Knife Disperser= Rotor M + Stator M

See our instruction manual for further details on operation

Instruction Manual
