NRD65M - Navac Industrial Vacuum Pump
Information

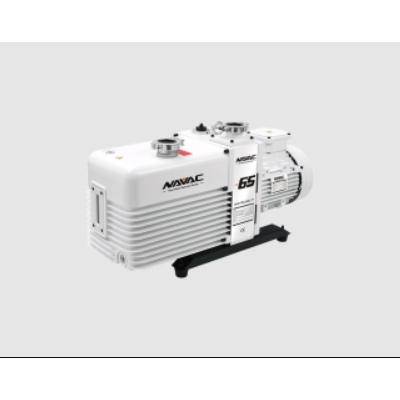

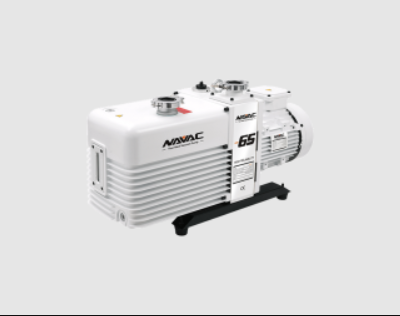

Navac NRD-65
Dual-Stage Oil-Sealed Rotary Vane Vacuum Pump
The NRD series dual-stage rotary vane vacuum pumps deliver exceptional performance and reliability.
Heavy-duty pumps, Built to last

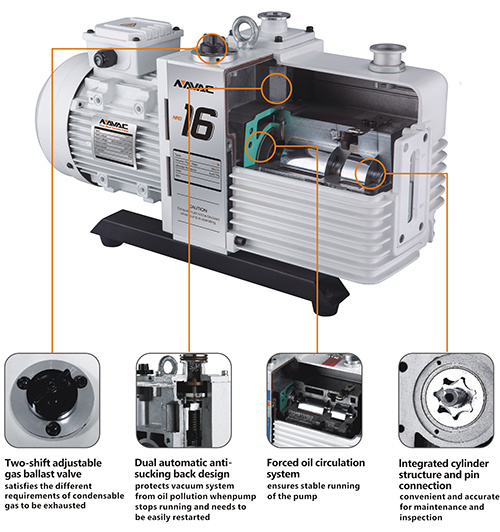

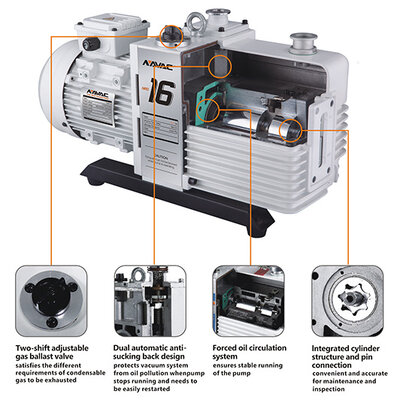

Features:
-Integrated cylindrical design,
-Cutting-edge forced oil circulation system
-Automatic anti-suck-back oil valve
-Adjustable gas ballast
Applications:
R&D, scientific, and medical fields, these pumps are ideal for use with analytical systems, vacuum ovens, vacuum coating, sterilization, freeze drying, microscopy, and as backing pumps for turbo, diffusion, and roots blowers. Corrosion-resistant models are also available for enhanced durability.
Specs
| displacement speed | m3/h (50Hz) | 65 |
| cfm (60Hz) | 46 | |
| ultimate pressure (total) | pa | 4×10-1 |
| Torr | 3.0×10-3 | |
| mbar | 4×10-3 | |
| ultimate pressure GB (total) | pa | 8×10-1 |
| Torr | 6.0×10-3 | |
| water vapor tolerance | mbar | 20 |
| Torr | 15 | |
| water vapor capacity | kg/h | 0.9 |
| power rating | kw | 2.2 |
| hp | 3 | |
| Motor speed | rpm (50Hz) | 1440 |
| rpm (60Hz) | 1720 | |
| Oil capacity | litres | 4 |
| Oil type (NPO) | 100H | |
| Inlet and exhaust flange | KF40 | |
| Noise level | dB | 62 |
| Ambient Temperature | ℃ | 5-40 |
| net weight | kg | 65 |
| lbs | 143 | |
| dimensions | mm
inch |
720*234*358
28.3*9.2*14 |
For a copy of the manual, click here
