T10 Homogenizer Disperser Shaft

The Goldleaf dispersing tools and generators have unique slanted rotor slots for fast processing and improved mixing turbulence.

All Goldleaf disbursing shafts have the same coupling system, allowing all the drive motors to accept any choice of suitable shafts.

Dispersing tools are sold complete with rotor and stators as F (fine viscosity), N (neutral viscosity), V (high viscosity) and M (knife version) types. Different rotors and stators are available to interchange. Replacement rotors and stators are available for all types of dispersing tools such as

T-10 (for use with X 120, and X 1000)

Disbursing shafts have the same coupling system, allowing all the drive motors to accept multiple sizes of disperser shafts.

The viscosity of the fluid should be used to determine the type of disperser to use.

See out table below or our shaft selection guide here

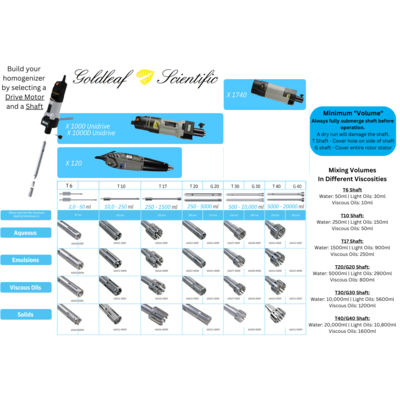

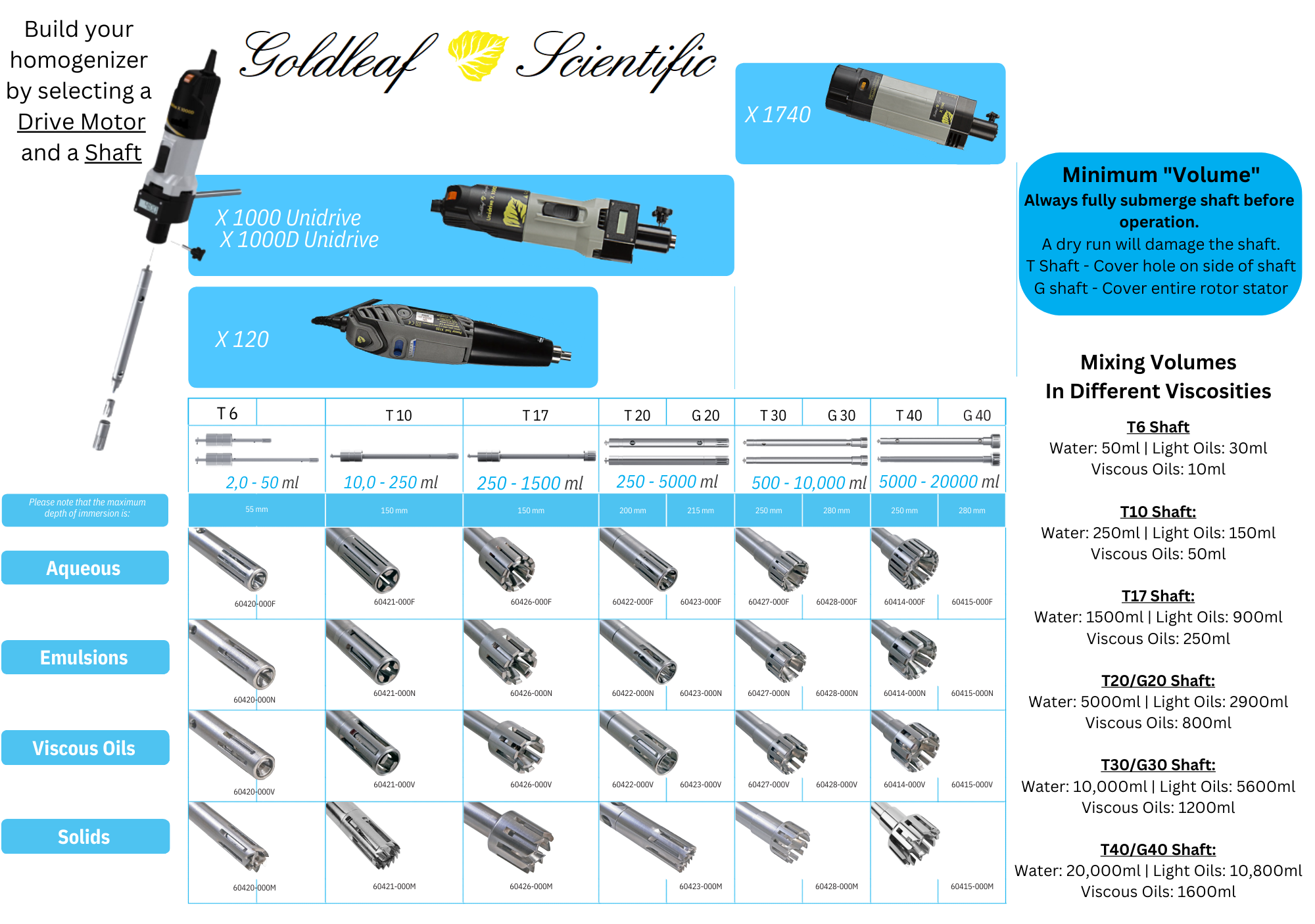

Shaft selection table

Dispersing tools are sold complete with rotor and stators. Rotors and stators can be changed which can convert the shaft for other applications i.e convert a viscous shaft to a fine shaft. Replacement rotors and stators are available for all types of dispersing tools such as.

• V-Disperser= V-Rotor + V-Stator
• F-Disperser= F-Rotor + F-Stator
• N-Disperser= F-Rotor + V-Stator
• M-Knife Disperser= Rotor M + Stator M

See our instruction manual for further details on operation

Instruction Manual
