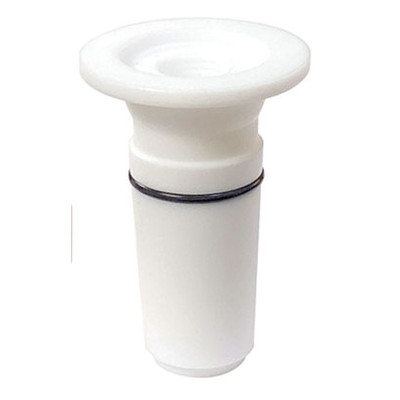

Triclamp to Male Glass Joint Adapter

PTFE adapters provide an easy and vacuum tight connection from a standard tapered glass joint to triclamp/sanitary flanges

The viton o-ring seals great after repeated uses and only needs periodic replacement for the part to last indefinitely. PTFE is chemical resistant to almost all materials and will not breakdown or degrade. The design and dimensions are engineered to provide the largest hole opening and while maintaining rigidity. Our unique design is a shorter overall length which increases the allowable hole diameter and reduces material and cost. Also compatible for use with medium/short joint options. These adapters are made in house and available with short lead times. Male end connects to a female (outer) glass joint.

For use periodic use up to 260°C, but do not use above 220°C for long duration.

PTFE is virgin and COA sheets can be supplied with the order.

For other sizes or dimensions not listed please contact us for custom
